GEOMATERIALS Schaumglasschotter (trocken)

5310 aa

Manufacturer	SCHLÜSSELBAUER Geomaterials GmbH
Product group(s)	Foam glass granulate

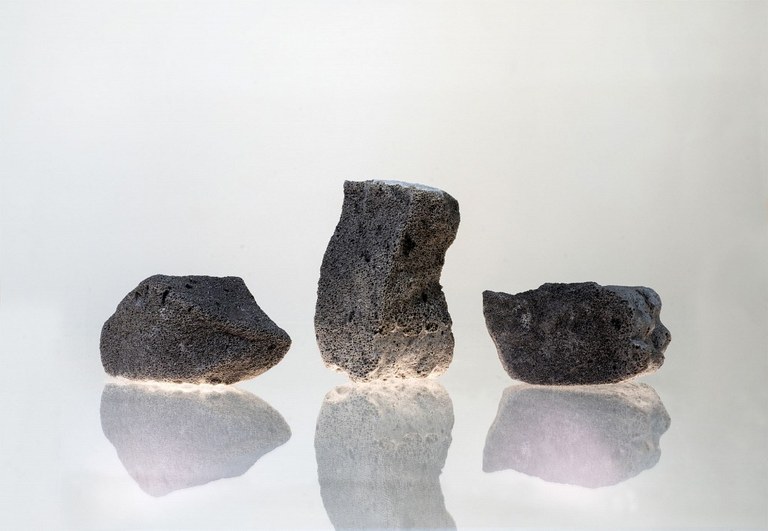

Product images

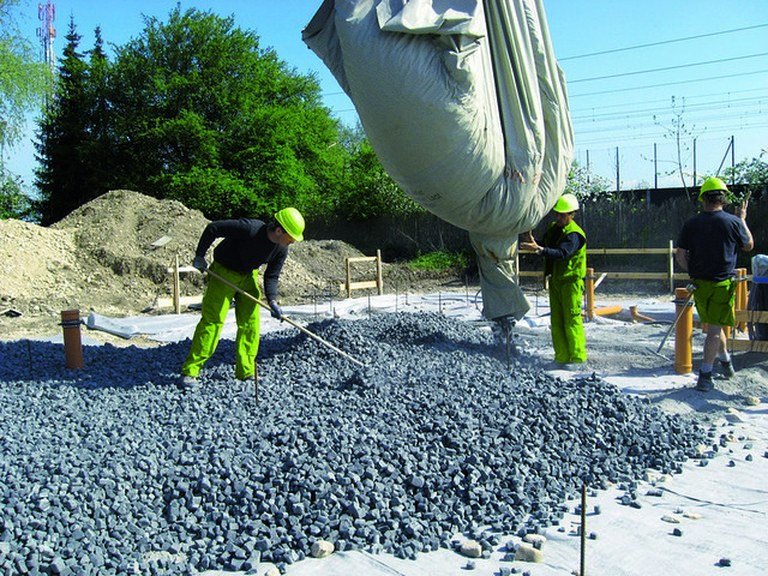

Manufacturer's product description	GEOMATERIALS Schaumglas wird aus recykliertem Altglas gewonnen, ist federleicht, formstabil, alterungsbeständig und eignet sich hervorragend für die Dämmung unter Bodenplatten. Wärmedämmend-lastabtragend-ökologisch-preiswert: GEOMATERIALS Schaumglas bietet eine kostengünstige und umweltfreundliche Alternative zur herkömmlichen Dämmung mit XPS Platten unter Fundament- und Kellerplatten.
Details	Show detailed information from baubook
Eco-labels, quality seals, labels	Österreichisches Umweltzeichen
Platforms	Vorarlberg WBF klimaaktiv Kriterien Niederösterreich WBF ÖkoBauKriterien wohngsund

Dimensions
Thickness	12–60 cm
Building physics values
λr thermal conductivity rated valueAUT Austrian rated heat conductivity value. This value is to be used for thermal performance calculations (energy performance certificates, etc.). Definition for insulating materials: A value that is not exceeded by at least 90% of production (probability of acceptance 90%), valid for an average temperature of 10°C and the state of equilibrium for humidity at 23°C/80% relative atmospheric humidity. Source: ÖNORM B 6015-2 Proof: - Nominal value from the CE Declaration of Performance with corresponding humidity conversion factors - Nominal value from the European Technical Approval with corresponding humidity conversion factors - test certificate for the rated value in accordance with ÖNORM 6015-5	0.085	W/(m·K)
μ Vapour diffusion resistance factor The water vapour diffusion resistance (μ value) is a parameter to determine the exchange of moisture of a construction material. The lower the μ value, the easier it is for vapour to penetrate a substance. Definition: Ratio of the vapour diffusion coefficients of the air and that of the relevant substance. Proof: Manufacturer information	1
ρ density Density (ρ) For solid materials, the nominal density is specified. For bulk materials consisting of granular solids, the bulk density is specified. For vegetation substrates, the bulk density in the dry state is specified. Proof: Manufacturer information	140	kg/m³
ρ density Density (ρ) For solid materials, the nominal density is specified. For bulk materials consisting of granular solids, the bulk density is specified. For vegetation substrates, the bulk density in the dry state is specified. Proof: Manufacturer information	130	kg/m³
ρ density Density (ρ) For solid materials, the nominal density is specified. For bulk materials consisting of granular solids, the bulk density is specified. For vegetation substrates, the bulk density in the dry state is specified. Proof: Manufacturer information	160	kg/m³
c specific heat capacity The specific heat capacity (c) denotes the capacity of a body to store energy in the form of heat. Definition: Volume of heat, which must be conveyed to a body with a mass of 1 kg, to generate heating of 1 degree Kelvin. Proof: Manufacturer information	900	J/(kg·K)
Usability
Combustibility class	A1
CE marking	yes

Retailer
Timeline	Aug 08, 2024 Last update / change with baubook quality assurance Dec 14, 2023 First declaration
