BACHL PUR/PIR Dämmplatten MV 80-100mm

8769 bd

Manufacturer	Bachl Karl
Product group(s)	PUR/PIR insulation boards

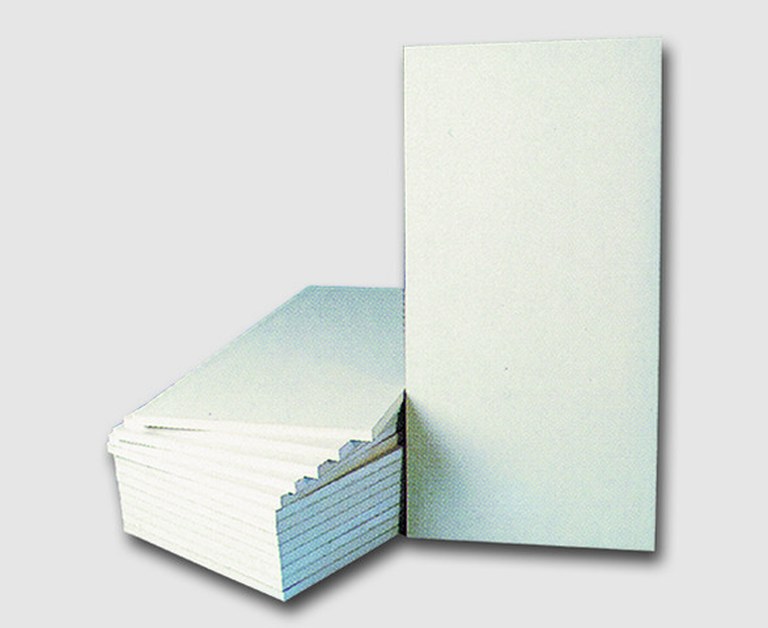

Product images
Manufacturer's product description	Wärmedämmstoff aus Polyurethan-Hartschaum. BACHL PUR-Dämmplatten MV
Details	Show detailed information from baubook
Platforms	Vorarlberg WBF klimaaktiv Kriterien Niederösterreich WBF ÖkoBauKriterien wohngsund

Dimensions
Thickness	8, 10 cm
Dimensions (description)	1250x625mm, glatte Kante 1225x600mm, Stufenfalz
Building physics values
λr thermal conductivity rated valueAUT Austrian rated heat conductivity value. This value is to be used for thermal performance calculations (energy performance certificates, etc.). Definition for insulating materials: A value that is not exceeded by at least 90% of production (probability of acceptance 90%), valid for an average temperature of 10°C and the state of equilibrium for humidity at 23°C/80% relative atmospheric humidity. Source: ÖNORM B 6015-2 Proof: - Nominal value from the CE Declaration of Performance with corresponding humidity conversion factors - Nominal value from the European Technical Approval with corresponding humidity conversion factors - test certificate for the rated value in accordance with ÖNORM 6015-5	0.027	W/(m·K)
Usability
Combustibility class	E
Type per OENORM B6000	PUR-DO-100

Retailer
Timeline	Nov 25, 2024 Last update / change with baubook quality assurance Jul 15, 2014 First declaration
