Caparol Capatect Sockelplatte EPS-S

1383 jr

Manufacturer	Synthesa Chemie GesmbH
Product group(s)	EPS automatic boards

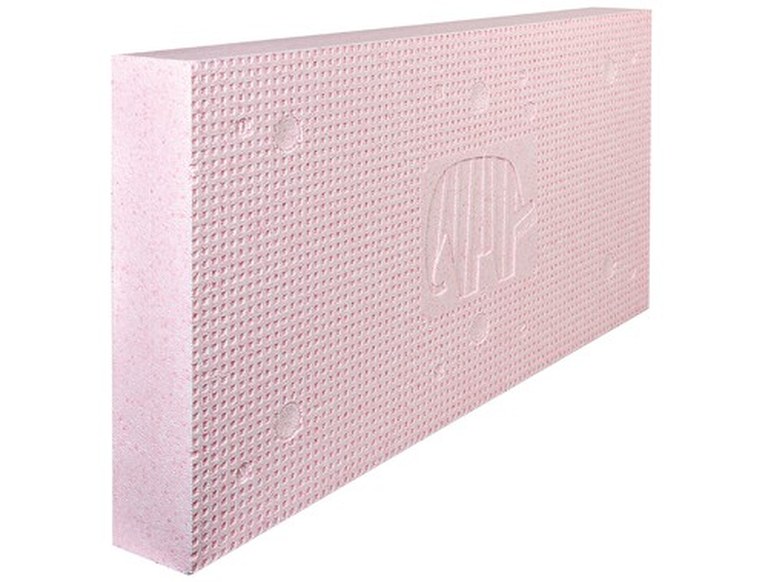

Product images
Manufacturer's product description	Dämmplatte aus expandiertem, geriffeltem Polystyrol-Partikelschaum der Produktart EPS-S für das Capatect Wärmedämm-Verbundsystem im Sockelbereich über Niveau. Frei von FCKW-, HFCKW-, HBCD- und HFKW-hältigen Treibgasen.
Processing	Verarbeitung lt. technischer Information. Generell hat unsere Verarbeitungsanleitung für Capatect Wärmedämm-Verbundsysteme und Zubehör Gültigkeit.
Details	Show detailed information from baubook
Platforms	Vorarlberg WBF klimaaktiv Kriterien Niederösterreich WBF ÖkoBauKriterien wohngsund

Dimensions
Format l x w	100 mm x 50 mm
Thickness	2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 16, 18, 19, 20 cm
Building physics values
λr thermal conductivity rated valueAUT Austrian rated heat conductivity value. This value is to be used for thermal performance calculations (energy performance certificates, etc.). Definition for insulating materials: A value that is not exceeded by at least 90% of production (probability of acceptance 90%), valid for an average temperature of 10°C and the state of equilibrium for humidity at 23°C/80% relative atmospheric humidity. Source: ÖNORM B 6015-2 Proof: - Nominal value from the CE Declaration of Performance with corresponding humidity conversion factors - Nominal value from the European Technical Approval with corresponding humidity conversion factors - test certificate for the rated value in accordance with ÖNORM 6015-5	0.035	W/(m·K)
μ Vapour diffusion resistance factor The water vapour diffusion resistance (μ value) is a parameter to determine the exchange of moisture of a construction material. The lower the μ value, the easier it is for vapour to penetrate a substance. Definition: Ratio of the vapour diffusion coefficients of the air and that of the relevant substance. Proof: Manufacturer information	40
Usability
Combustibility class	E
CE marking	yes

Timeline

Jan 24, 2025 Last update / change with baubook quality assurance

Jul 19, 2023 First declaration
